Kintronic Labs introduces NEW Main/Standby Transmitter Controller

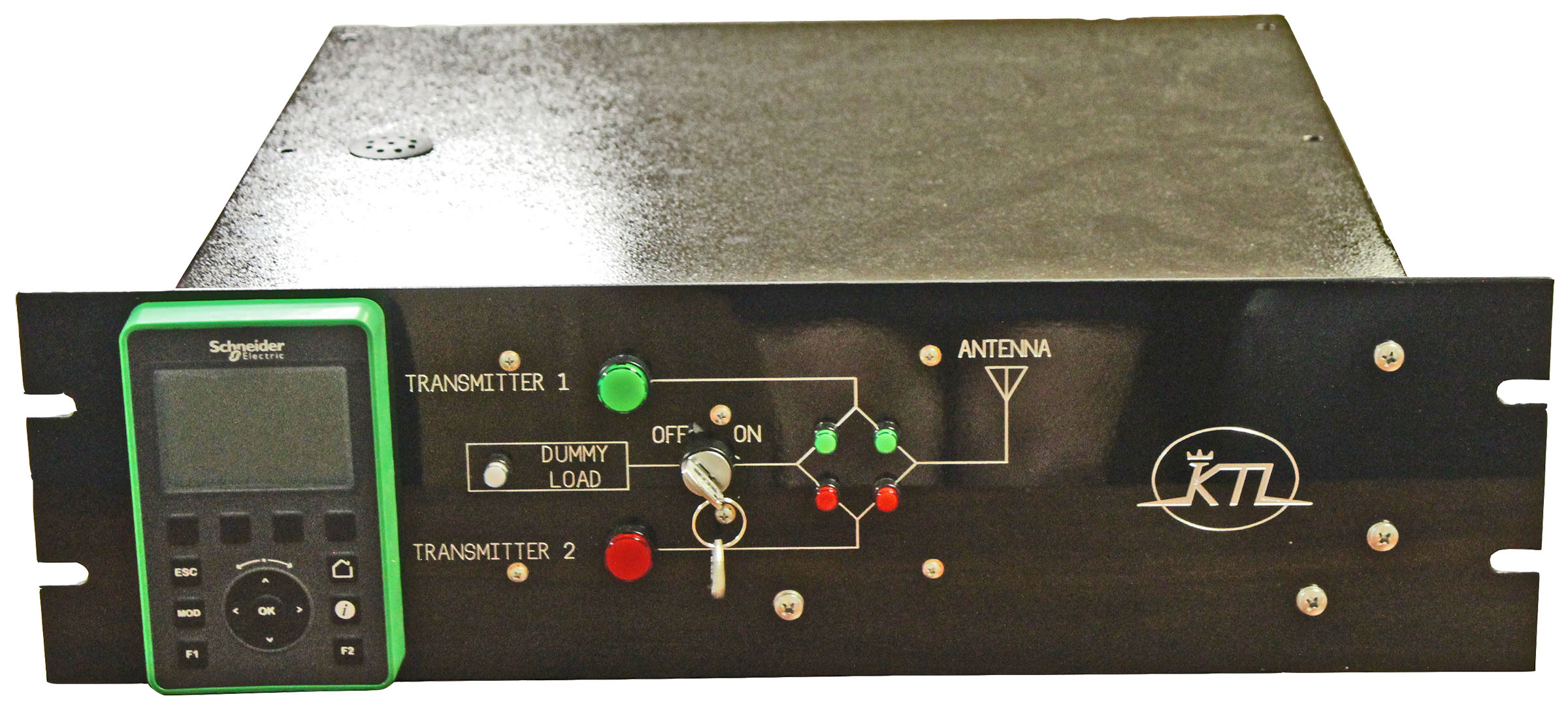

The new KINTRONIC RMC-1LR Controller is a PLC based control system for switching control of Main/ Standby transmitter selection. Featuring an exterior digital control unit, the user can set the time interval during which the AC pulse is applied to the RF contactor or coaxial switch according to the typical switch transition time.

Standard features include:

  • Programmable Logic Controller (PLC) with relay logic emulation
  • Versatile electrical interface to accommodate direct AC drive or low voltage DC drive of any type of open frame or coaxial switch
  • Front panel illuminated pushbutton selection
  • Remote control interface
  • Key operated XMTR Interlock Bypass for operation into dummy load
  • Failsafe Logic utilizing transmitter RF mute to prevent switch movement with RF applied
  • Adjustable duration switching window for solenoid protection and to permit operation of any type of RF Switch
  • Electrical interface provisions on rear:
  1. 14 – Pin Quick Disconnect For RF Contactor;
  2. 7 – Pin Quick Disconnect For Remote control;
  3. 12 – Pin Barrier Strip For XMTR RF Mute, Antenna Safely Interlock & Dummy Load Air Interlock
  • Compact 3RU
