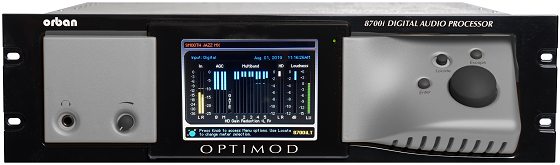

Orban Optimod FM-8700i LT Audio Processor

Summary

OPTIMOD 8700i LT is a light version of Orban’s flagship audio processor OPTIMOD 8700i. It offers the same versatile five-band and two-band audio processing for both analog FM transmission and digital media (DAB+/HD Radio/Streaming) as the 8700i.

The OPTIMOD 8700i LT Audio Processor has exclusive features such as the Multipath Mitigator phase corrector which reduces multipath distortion without compromising the stereo separation and the Subharmonic Synthesizer which allows you to add modern-sounding bass punch to older recordings. It also includes Orban’s MX limiter technology which lowers distortion, improves transient punch, and minimizes preemphasis-induced high frequency loss. Further outstanding features are monitored and alarmed dual redundant power supplies as well as safety bypass relays for carefree 24/7 operation. Of course, a digital MPX output is also available as well as a 10 MHz clock input.

Features

Audio Processor Quick Setup
This feature provides a guided, systematic procedure for setting up the 8700i LT.

Factory Presets & LESS-MORE Control
The OPTIMOD 8700i LT comes with a variety of factory presets which you can use as basis to create your own signature sound. Orban is happy to help you find the perfect setup for your station.

Subharmonic Synthesizer
The Subharmonic Synthesizer creates energy one octave below program energy in the range of 50-90 Hz when such energy is not present at the input and when music is detected. It adds punch and slam to older material while retaining musicality.

“Multipath Mitigator” Left/Right Phase Skew Correction
The phase skew corrector maximizes both FM and Digital Radio processing paths for the quality of a mono mixdown or blend that might occur in a receiver or player device.

“True Peak” Control
”True Peak” Control is available for the digital radio processing with an accuracy of better than 0.5 dB. For typical program material, accuracy is 0.2 dB.

ITU BS-412 Multiplex Power Control
An improved BS-412 Multiplex Power Controller provides a new user-adjustable, program-adaptive algorithm to make operation smoother and more subtle.

ITU-R BS.1770-4 Loudness Control
Loudness Control is available for digital radio and analog radio processing chains in countries that enforce a BS.1770 loudness limit on digital and/or analog radio broadcasts.

Composite Limiter/Clipper
A patented “Half-Cosine Interpolation” composite limiter providing excellent spectral protection of the pilot tone and SCAs (including RDS). If you prefer the sound of conventional composite clipping, we also offer a defeatable composite clipper with spectral protection for the pilot tone and subcarriers. The composite clipper drives the composite limiter, which serves as an overshoot compensator for the composite clipper when it is active.

SSB Stereo Encoder Operation
Allows its stereo encoder’s stereo subchannel modulator to operate in an experimental compatible single sideband/vestigial sideband mode. In SSB mode, the sub-channel modulator acts as a pure SSB generator for L–R material in the frequency range of 150 Hz to 17 kHz and as a vestigial sideband generator below 150 Hz.

Low-Delay DJ Monitor Output
The MX limiter, Multipath Mitigator, and subharmonic synthesizer add delay that makes it impractical for talent to monitor all of the processing structures off-air with headphones. A new, dedicated headphone monitor chain (with about 6 ms delay) provides a full five-band FM processor that lets you dial in your preferred amount of “FM clipper sound.”

Digital MPX
The 384/192 kHz AES3 digital composite output that is compatible and interoperable with the 192 kHz standard being implemented by several transmitter manufacturers.

10 MHz Reference Input
A 10 MHz reference input allows the stereo pilot tone frequency and digital composite output sample rate to be locked to a 10 MHz reference signal (like GPS), facilitating single-frequency-network (SFN) and near-single-frequency-network (N-SFN) operation.

Safety Bypass Relays
Analog and AES3 digital inputs and outputs have hard-wire safety bypass relays in case of hardware or power failures.

Dual Power Supplies
The 8700i LT’s dual power supplies with independent AC line inputs provide redundant operation to ensuring maximum uptime. Both power supplies are monitored permanently and, in case of failure, an alarm is generated.

RDS
Built-in full-featured RDS/RBDS generator that supports static and dynamic RDS values.

Bypass Test Mode and Tone Generator
A Bypass Test Mode can be invoked locally, by remote control or by automation to perform a broadcast system test or to compare easily original and processed sound. A built-in line-up tone generator facilitates quick and accurate level setting.

SNMP Support
The SNMP (Simple Network Management Protocol) feature allows you to monitor your OPTIMOD’s status and to send alarm notifications via your OPTIMOD’s Ethernet connection to your network.

Remote Control or front panel operation
You can operate and configure the 8700i LT comfortably via the supplied Windows PC Software using your local network or the Internet. Alternatively all functionalities are also available via the front panel with its coloured display

Technical Specification

Total System Distortion (de-emphasized, 100% modulation): <0.01% THD, 20 Hz – 1 kHz, rising to <0.05% at 15 kHz. <0.02% SMPTE IM Distortion

Frequency Response: Follows standard 50μs or 75μs preemphasis curve ±0.10 dB, 2.0 Hz – 15 kHz. Analog left/right output and Digital output can be user configured for flat or pre-emphasized output

Sample Rate: 64 kHz to 512 kHz, depending on processing being performed

Total System Separation: > 55 dB, 20 Hz – 15 kHz; 65 dB typical

Peak Overshoot at HD Output: 0.5 dB True Peak maximum; 0.2 dBTP typical

Defeatable Analog FM Processing Delay: 0.27 to 12.0 seconds

DAB+ /HD Mode Delay: 0.365015625 to 8.0 seconds (FM path); 0 to 6.0 seconds (HD path)

Minimum Processing Delay: 3.7 ms to 270 ms, processing structure dependent

Multipath Mitigator delay: = 146 ms Subharmonic Synthesizer delay = 67.5 ms

Low-Latency Monitor Output Delay6 ms

Analog Audio Inputs/Outputs: Stereo on XLR connectors, with relay bypass

Nominal Input level: –4.0 to +13.0 dBu (VU) or -2 dBu to +20 dBu (PPM)Output level: –6 dBu to +24 dBu peak

Digital AES Audio Inputs/Outputs1 x Stereo input on XLR, 24 bit resolution, with relay bypass1 x Stereo input or SYNC input on XLR, 24 bit resolution, with relay bypass

Input Reference Level: Variable within the range of –30 dBFS to –7 dBFS (VU) or -23 dBFS to 0dBFS (PPM)2 x Stereo outputs on XLR, can be individually set to emit the analog FM processed signal, the digital radio processed signal, or the monitor signal

Output Level: (100% peak modulation): –20.0 to 0.0 dBFS software controlled

Sampling Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz

Wordclock Sync Input on BNC Connector1x word clock or 10 MHz clock, automatically selected

DSP master clock can be phase-locked to these signals, which phase-locks the 19 kHz pilot tone frequency, facilitating SFN operation. Digital output sample frequency can also be locked to these signals.

Composite Baseband Outputs1 x 192 kHz AES3; 2 x analog providing –12 dBu (0.55 Vp-p) to +12.0 dBu (8.72 Vp-p) levels for 0.1 dB adjustment resolution
