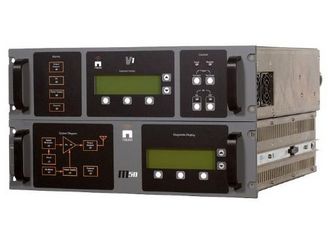

DISCONTINUED Nautel V1 – 1kW FM Transmitter

Nautel logo

nautel_v1_transmitter

Summary

Nautel’s 1kW V1 offers V series performance and reliability in a compact and affordable package. While the V1 may be compact, it offers full size V Series features such as a graphical user interface, outstanding efficiency and support for adaptive NxLink web-based remote management.

Technical Specification

Technical Specification

Quick Specs:

  • Analog operation only
  • Ultra compact, only 6RU of rack space for transmitter and digital exciter
  • 4 parallel wideband amplifiers ensure maximum on-air availability
  • 240 x 64 LCD graphical user interface, advanced alarm system
  • 100-event log and on-board real-time clock make operation, troubleshooting and system monitoring easy
  • Support for NxLink web based monitoring and control
  • High overall efficiency results in low power consumption and reduced operating costs
  • (Efficiency: 60% at 1200 W)
  • Low Weight: 17 kg (37 lbs)
  • Includes high performance M50 digital exciter
